Product summary
Mercusys product available through the Italian Electrics catalogue.
Reference: MS-AC12
Available from supplier
Complete supplier documentation, images and technical details are available below.
Everything you need to know.
Essential product information first, followed by the complete supplier documentation.
Description & technical content

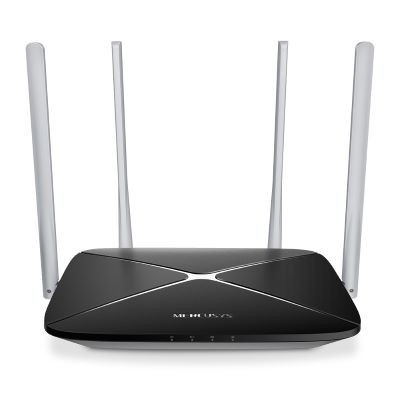

Mercusys AC12
Router Wireless Dual Band AC1200
- Supporta standard wireless 802.11ac dalle alte performance
- Wi-Fi Dual Band fino a 1200Mbps, perfetto per gaming online e streaming video
- 4 antenne esterne per una copertura wireless estesa
- Rete Ospiti - crea una rete Wi-Fi secondaria per i tuoi ospiti separandola da quella principale per mantenere la tua privacy.
- Installazione semplice - guida web intuitiva per configurare il Router in pochi istanti
Wireless
Wireless Standards
IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency
2.4 - 2.5GHz, 5.15 - 5.25GHz
Signal Rate
300Mbps at 2.4GHz, 867Mbps at 5GHz
Reception Sensitivity
5GHz
• 11a 6M: -92dBm
• 11a 54M: -75dBm
• 11ac 20M MCS8: -70dBm
• 11ac 40M MCS9: -64dBm
• 11ac 80M MCS9: -60dBm
2.4GHz
• 11g 6M: -95dBm
• 11g 54M: -77dBm
• 11n 20M MCS7: -74dBm
• 11n 40M MCS7: -71dBm
Wireless Security
WPA-PSK / WPA2-PSK
Wireless Functions
Enable/Disable Wireless Radio, Wireless Statistics
Software
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Access Control
Local Management
Remote Management
DHCP
Server
Port Forwarding
Virtual Server, UPnP, DMZ
Firewall Security
IP and MAC Address Binding
Guest Network
2.4GHz Guest Network, 5GHz Guest Network
Hardware
Dimensioni (W X D X H)
222 x 140 x 32 mm
Button
WPS/Reset Button
External Power Supply
9V/0.85A
Tipologia di Antenna
4 * 5dBi
Ethernet Ports
3*10/100Mbps LAN Ports
1*10/100Mbps WAN Port
Other
Package Contents
• AC1200 Wireless Dual Band Router (AC12)
• Power Adapter
• Ethernet Cable
• Quick Installation Guide
Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
Mercusys AC12
Router Wireless Dual Band AC1200
- Supporta standard wireless 802.11ac dalle alte performance
- Wi-Fi Dual Band fino a 1200Mbps, perfetto per gaming online e streaming video
- 4 antenne esterne per una copertura wireless estesa
- Rete Ospiti - crea una rete Wi-Fi secondaria per i tuoi ospiti separandola da quella principale per mantenere la tua privacy.
- Installazione semplice - guida web intuitiva per configurare il Router in pochi istanti
Wireless
Wireless Standards
IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency
2.4 - 2.5GHz, 5.15 - 5.25GHz
Signal Rate
300Mbps at 2.4GHz, 867Mbps at 5GHz
Reception Sensitivity
5GHz
• 11a 6M: -92dBm
• 11a 54M: -75dBm
• 11ac 20M MCS8: -70dBm
• 11ac 40M MCS9: -64dBm
• 11ac 80M MCS9: -60dBm
2.4GHz
• 11g 6M: -95dBm
• 11g 54M: -77dBm
• 11n 20M MCS7: -74dBm
• 11n 40M MCS7: -71dBm
Wireless Security
WPA-PSK / WPA2-PSK
Wireless Functions
Enable/Disable Wireless Radio, Wireless Statistics
Software
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Access Control
Local Management
Remote Management
DHCP
Server
Port Forwarding
Virtual Server, UPnP, DMZ
Firewall Security
IP and MAC Address Binding
Guest Network
2.4GHz Guest Network, 5GHz Guest Network
Hardware
Dimensioni (W X D X H)
222 x 140 x 32 mm
Button
WPS/Reset Button
External Power Supply
9V/0.85A
Tipologia di Antenna
4 * 5dBi
Ethernet Ports
3*10/100Mbps LAN Ports
1*10/100Mbps WAN Port
Other
Package Contents
• AC1200 Wireless Dual Band Router (AC12)
• Power Adapter
• Ethernet Cable
• Quick Installation Guide
Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
