Product summary
Mercusys product available through the Italian Electrics catalogue.
Reference: MS-MW300UM
Available from supplier
Complete supplier documentation, images and technical details are available below.
Everything you need to know.
Essential product information first, followed by the complete supplier documentation.
Description & technical content

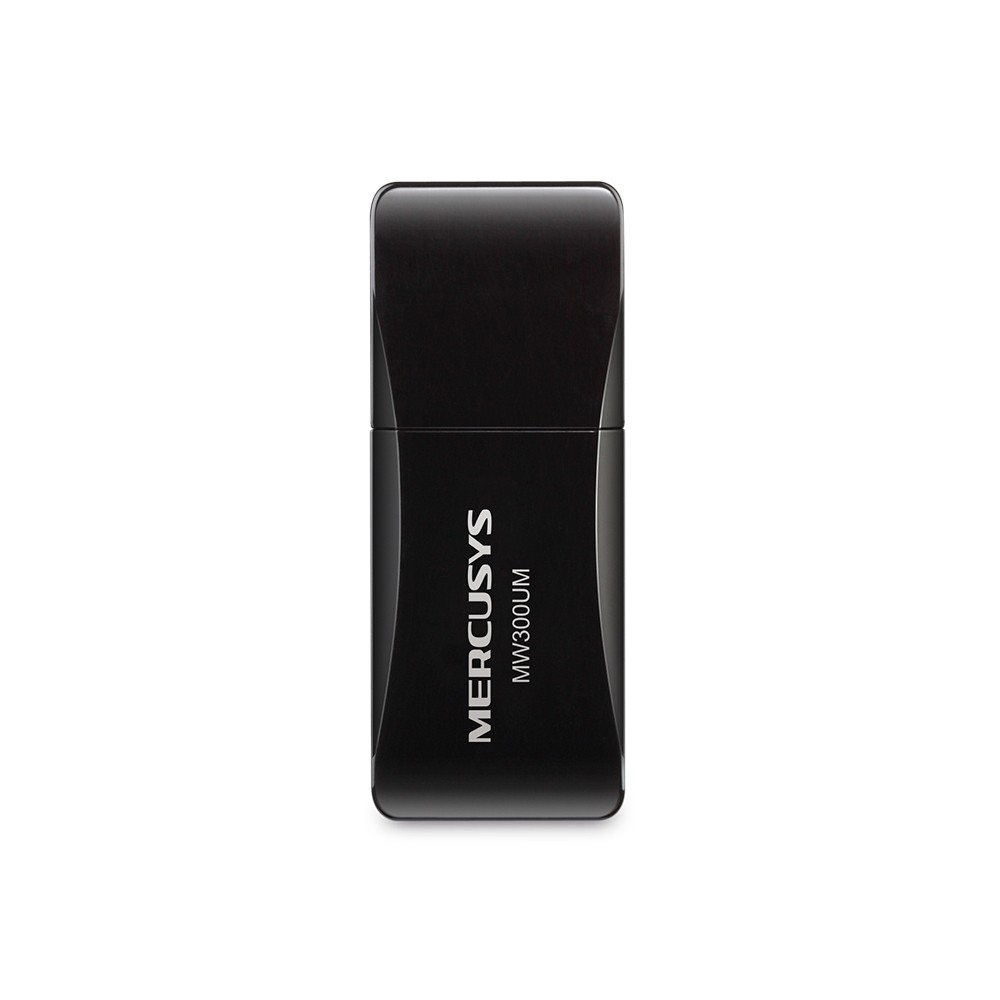

Mini scheda Wireless N300 USB
- Velocità wireless fino a 300Mbps
- Ideale per gaming online, streaming video HD, navigazione web e molto altro.
- Supporta Windows 10/8.1/8/7/XP (32/64bit)
Wireless
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
2.400 - 2.4835GHz
Signal Rate
11n: Up to 300Mbps(Dynamic)
11g: Up to 54Mbps(Dynamic)
11b: Up to 11Mbps(Dynamic)
Reception Sensitivity
270M: -62dBm@10% PER
130M: -65dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmission Power
<20dBm
Wireless Security
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Hardware
Dimensioni (W X D X H)
1.69 × 0.68 × 0.33 in. (42.9 × 17.2 × 8.5 mm)
Interfaces
USB 2.0
Tipologia di Antenna
Internal
Other
Certifications
CE, ROHS
Package Contents
N300 Wireless Mini USB Adapter
MW300UM
Quick installation guide
Resource CD
Environment
Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)
Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)
Operating humidity: 10% ~ 90% Non-Condensing
Storage humidity: 5% ~ 90% Non-Condensing
System Requirements
Windows 10/8.1/8/7/XP (32/64bit)
Mini scheda Wireless N300 USB
- Velocità wireless fino a 300Mbps
- Ideale per gaming online, streaming video HD, navigazione web e molto altro.
- Supporta Windows 10/8.1/8/7/XP (32/64bit)
Wireless
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
2.400 - 2.4835GHz
Signal Rate
11n: Up to 300Mbps(Dynamic)
11g: Up to 54Mbps(Dynamic)
11b: Up to 11Mbps(Dynamic)
Reception Sensitivity
270M: -62dBm@10% PER
130M: -65dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmission Power
<20dBm
Wireless Security
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Hardware
Dimensioni (W X D X H)
1.69 × 0.68 × 0.33 in. (42.9 × 17.2 × 8.5 mm)
Interfaces
USB 2.0
Tipologia di Antenna
Internal
Other
Certifications
CE, ROHS
Package Contents
N300 Wireless Mini USB Adapter
MW300UM
Quick installation guide
Resource CD
Environment
Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)
Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)
Operating humidity: 10% ~ 90% Non-Condensing
Storage humidity: 5% ~ 90% Non-Condensing
System Requirements
Windows 10/8.1/8/7/XP (32/64bit)
