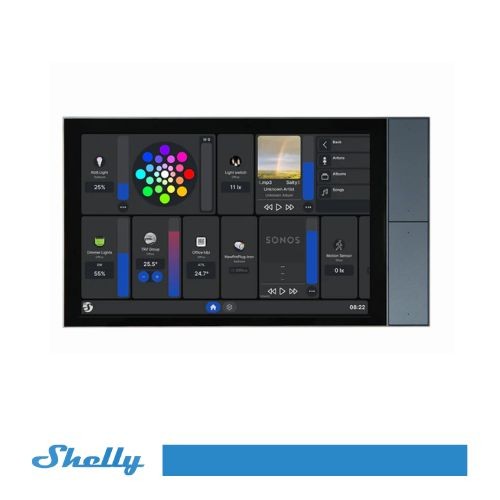

Shelly Wall Display XL Grigio | Dimensioni XL
Pannello di controllo per casa intelligente con display touch da 10,1”, relè integrato e quattro pulsanti personalizzabili. Si installa in una scatola elettrica a muro standard e offre un controllo completo e semplice sui tuoi dispositivi Shelly, ideale per case, appartamenti, hotel e spazi commerciali.
Caratteristiche:
- Display touchscreen a colori HD reattivo da 10,1"
- CPU quad-core ultra-veloce per risposta istantanea
- Integrazione con Home Assistant
- Design da parete compatibile con scatole standard EU
- Altoparlanti stereo integrati duali da 2W di alta qualità
- Supporto per altoparlanti Bluetooth e SONOS
- Connettività duale: Bluetooth 5.4 e Wi-Fi 6 Dual Band (2,4GHz e 5GHz)
- Relè integrato per il controllo di apparecchi fino a 1500W
- 4 pulsanti personalizzabili per azioni rapide e scene
- Sensori integrati di prossimità e luminosità (lux)
- Funzione di monitoraggio energetico dei dispositivi Shelly PM collegati
- Interfaccia schermo completamente personalizzabile per la gestione dei dispositivi
- Lettore multimediale integrato e supporto per radio internet
Specifications
| Quantity | Value |
| Physical | |
| Size (HxWxD): | 155,8x272,5x38,3 mm / 6.13x10.7x1.50 inch |
| Weight: | 920 g / 32.45 oz |
| Touch Screen: | 5-point capacity screen, G+FF touch |
| Screen resolution: | 1280x752 px |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 15 mm / 0.24 to 0.59 in |
| Mounting: | Wall box |
| Shell material: | Metal stamping, PC with coating, glass |
| Shell color: |
- Black with Grey frame
- Black with Black frame
| Speaker: | 2x 2 W (BOX sound cavity) | |
| Environmental | ||
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F | |
| Humidity: | 30 % to 70 % RH | |
| Max. altitude: | 2000 m / 6562 ft | |
| Electrical | ||
| Power supply: | 100 - 240 V~ 50/60Hz | |
| Power consumption: | < 15 W | |
| USB TYPE-C power supply: | 5 V⎓ / 3 A | |
| Power Button: | 1 button for turning On/Off the screen | |
| Control Buttons: | 4 functional buttons for setting | |
| Output circuits ratings | ||
| Max. switching voltage: | 240 V~ | |
| Max. switching current: | 5 A | |
| Output (AC) | 100 - 240 V~ 50/60Hz | |
| Output (USB TYPE-C) | 5 V⎓ / 0.5 A | |
| Sensors, meters | ||
| Internal-temperature sensor: | No | |
| Ambient temperature sensor: | No | |
| Humidity sensor: | No | |
| Light sensor: | Yes | |
| Microphone: | Yes (Four-microphone line array) | |
| G-sensor: | No | |
| Proximity sensor: | Yes (≤1 meter) | |
| Radio | ||
| Wi-Fi | ||
| Protocol: | Wi-Fi 6 Dual Band | |
| RF band: | 2.4 & 5 GHz | |
| Max. RF power: | < 20 dBm | |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors | (Depends on local conditions) |
| Bluetooth | ||
| Protocol: | 5.4 | |
| RF band: | 2402 - 2480 MHz | |
| Max. RF power: | < 4 dBm | |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors | (Depends on local conditions) |
| Microcontroller unit | ||
| CPU: | Rockchip RK3566 Quad core Cortex-A55 | |
| RAM: | 2 GB | |
| Flash: | 16 GB | |
| System: | Android 11 | |
| Firmware capabilities | ||
| Schedules: | 20 | |
| Webhooks (URL actions): | 20 with 5 URLs per hook… | |
| Scripting: | No | |
| MQTT: | Yes |
