Product summary
TP-Link product available through the Italian Electrics catalogue.
Reference: TL-MC200CM
Available from supplier
Complete supplier documentation, images and technical details are available below.
TP-Link
SKU
TL-MC200CM
Dettagli prodotto
Everything you need to know.
Essential product information first, followed by the complete supplier documentation.
Panoramica
Supplier documentation
Description & technical content

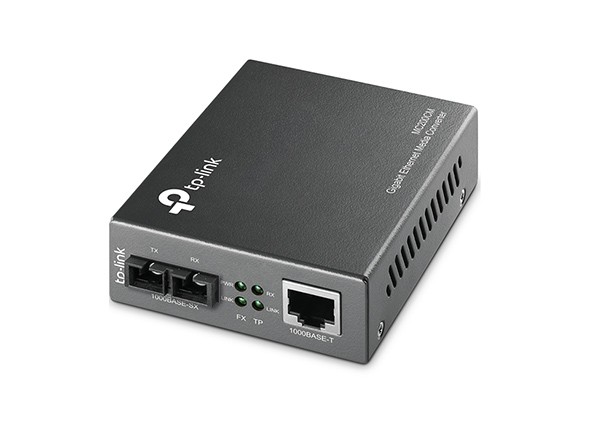

MC200CM
Media Converter 1000BASE-SX/1000Base-T, multimodale, SC
- Compatibile con gli standard IEEE 802.3ab e IEEE 802.3z
- Possibilità di configurare la porta FX in modalità di trasferimento Force / Auto
- Supporta connessioni in fibra ottica fino a 0.5 Km
| CONVERTITORE MEDIA & MODULO | |
|---|---|
| Standard & protocolli | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Funzionalità di base | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Extends fiber distance up to 0.55km using 50/125um fiber Extends fiber distance up to 0.22km using 62.5/125um fiber |
| Porte | 1 1000M SC/UPC port 1 1000M RJ45 port (Auto MDI/MDIX) |
| Lunghezza d'onda | 850nm |
| Network Media 1000BASE-SX | Multi-mode Fiber |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| LED | PWR, LINK, RX |
| Dimensioni (L x P x A) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Alimentazione | External Power Adapter |
| Massimo consumo di energia | 1.66W |
| Sicurezza & emissioni | FCC, CE, RoHS |
| Package Contents | • Media Converter MC200CM • Power Adapter • Installation Guide |
| Ambiente | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
MC200CM
Media Converter 1000BASE-SX/1000Base-T, multimodale, SC
- Compatibile con gli standard IEEE 802.3ab e IEEE 802.3z
- Possibilità di configurare la porta FX in modalità di trasferimento Force / Auto
- Supporta connessioni in fibra ottica fino a 0.5 Km
| CONVERTITORE MEDIA & MODULO | |
|---|---|
| Standard & protocolli | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Funzionalità di base | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Extends fiber distance up to 0.55km using 50/125um fiber Extends fiber distance up to 0.22km using 62.5/125um fiber |
| Porte | 1 1000M SC/UPC port 1 1000M RJ45 port (Auto MDI/MDIX) |
| Lunghezza d'onda | 850nm |
| Network Media 1000BASE-SX | Multi-mode Fiber |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| LED | PWR, LINK, RX |
| Dimensioni (L x P x A) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Alimentazione | External Power Adapter |
| Massimo consumo di energia | 1.66W |
| Sicurezza & emissioni | FCC, CE, RoHS |
| Package Contents | • Media Converter MC200CM • Power Adapter • Installation Guide |
| Ambiente | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
