TP-Link SKU TL-SF1009P

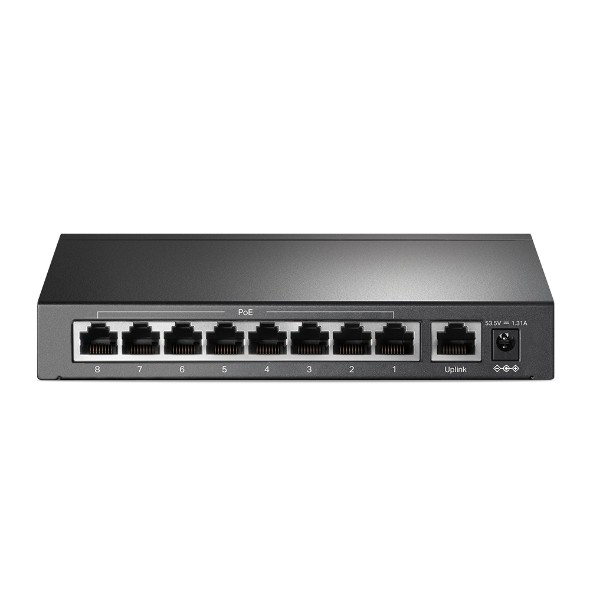

TP-Link Switch Desktop 9 Porte 10/100Mbps di cui 8 PoE+ - TL-SF1009P

Name: TP-Link Switch Desktop 9 Porte 10/100Mbps di cui 8 PoE+ - TL-SF1009P
Price: 49.54 EUR

49,54 €

Disponibil Gata de comandă

Secure payment Protected checkout and transactions

Tracked delivery Follow your order through fulfilment and shipping

Expert support Assistance before and after your purchase

Termeni și condiții
Garanție de returnare a banilor în 30 de zile
Livrare: 2-3 zile lucrătoare

Detalii produs

Everything you need to know.

Essential product information first, followed by the complete supplier documentation.

Prezentare generală

TP-Link product available through the Italian Electrics catalogue.

Reference: TL-SF1009P

Available from supplier

Complete supplier documentation, images and technical details are available below.

Fișă

Supplier documentation

Complete product content

View complete technical documentation 21 specification rows

Interfaccia: • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports) • AUTO Negotiation • AUTO MDI/MDIX
Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Numero ventole: Fanless
Physical security lock: Yes
Alimentatore esterno: External Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate: 1.3392 Mpps
Porte PoE: • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 65 W
Tabella ARP: 2K
Jumbo frame: 2 KB
Capacità di switching: 1.8 Gbps
Dimensioni ( L x P x A ): 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Max Power Consumption: • 3.6 (220/50 Hz. no PD connected) • 77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation: • 12.28 BTU/h (no PD connected) • 262.84 BTU/h (with 65 W PD connected)

Switch Desktop 9 Porte - 9 Porte RJ45 Fast Ethernet 10/100 Mbps.
Supporto PoE+ - 8 porte RJ45 supportano lo standard PoE+ 802.3af/at per trasferimento dati e alimentazione dei dispositivi PoE su un singolo cavo ethernet.
Power Budget PoE - Power Budget totale fino a 65W* per tutte le porte PoE, fino a 30W per singola porta.
Extended Mode - Trasmissione dati e alimentazione fino a 250 m**.
Priority Mode - Assegnazione priorità alle porte 1–2 per garantire la qualità di applicazioni tempo-sensibili come streaming voce e video.
Isolation Mode - Separazione del traffico dati in modalità one-click per aumentare performance e sicurezza.

Plug and Play - Nessuna configurazione necessaria.

CARATTERISTICHE HARDWARE
Interfaccia	• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports) • AUTO Negotiation • AUTO MDI/MDIX
Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Numero ventole	Fanless
Physical security lock	Yes
Alimentatore esterno	External Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate	1.3392 Mpps
Porte PoE	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 65 W
Tabella ARP	2K
Jumbo frame	2 KB
Capacità di switching	1.8 Gbps
Dimensioni ( L x P x A )	6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Max Power Consumption	• 3.6 (220/50 Hz. no PD connected) • 77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation	• 12.28 BTU/h (no PD connected) • 262.84 BTU/h (with 65 W PD connected)

CARATTERISTICHE SOFTWARE
Metodo di trasmissione	Store-And-Forward
Funzionalità avanzate	• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1–2) • Isolation Mode Button (Ports 1–8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

ALTRO
Certificazione	FCC, CE, RoHS
Contenuto della confezione	• TL-SF1009P • Power Adapter • Installation Guide
Ambiente	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
